Industrial Processes

Hanbay engineers work closely with plant designers and product managers to satisfy the many requirements in industrial processes. Fail-safe, mounting, accessibility, control and power options are discussed in detail to ensure seamless integration of Hanbay solutions into existing or new systems. Add precise flow control to your equipment and process chemicals, food, pharmaceuticals, HVAC, paper, and much more.

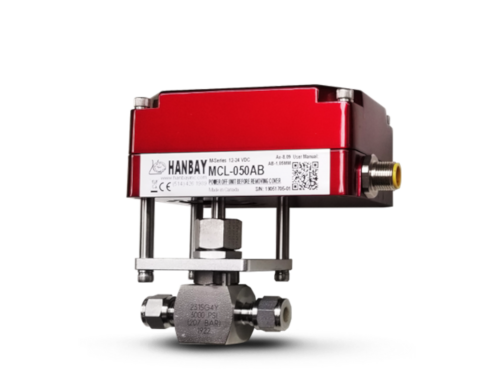

MULTI-TURN ACTUATORS

See Products

QUARTER-TURN ACTUATORS

See Products

HAZLOC MULTI-TURN ACTUATORS

See Products

HAZLOC QUARTER-TURN ACTUATORS

See Products

Specifications:

Voltages/Current

12-24 VDC, max 3 A @ 24 VDC
110-240 VAC, max 1.5 A @ 240 VAC

Control Options

Analog (4-20 mA, 1-5 V, 1-10 V) , Modbus RS485, TTL

Feedback (Optional)

4-20 mA

Output Torque Range

3 – 1241 in-lbs

Output Speed Range

1 – 152 seconds per turn

Positioning Precision

+/- 0.25°

Add-On Options

Manual Override
110-240 VAC power option
Spring Return or Battery Backup for fail-safe operation
Explosion Proof Enclosure (Class I Div 1 Groups B,C,D / Class II Groups E, F, G) IECEX & CSA certified

External Temp. Range

-40 – 60 °C

Motor

Brushless DC motor, computer control
